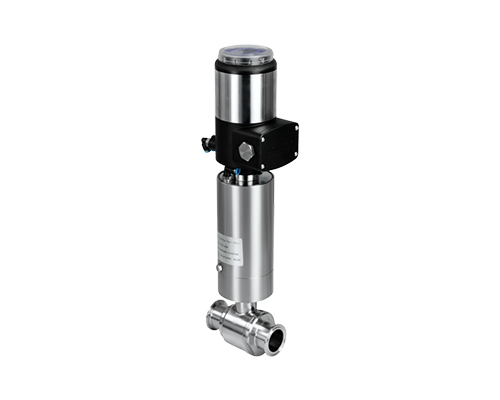

Pneumatic ball valve with C TOP

Applications

Pneumatic ball valve with C TOP, Both manually and automatically operated valve are mainly used in processing beverages, wine, oil refining, cosmetics and chemical industries.

Design Features

●Size：1"-4",DN25-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Gaskets:PTFE FDA 177.1550
●No matter what kind of liquid flow is, the handle can be mounted on the side of the valve body
●Whatever the connection is, it does not change the total length of the valve
●Connection : Clamp, weld, thread,flange,DIN、SMS、RJT、FIL
●Material contact partsAISI，304/316L
●Other parts AISI 304
●Certificate：PED，97/23EC

Control Unit

●Power supply：DC 24V±10%
●Single-acting (standard), double acting (option)
●Self-adjusting valves feature feedback
●Supports analog signal (4-20mA) & amp; electrical signal (DC24V) Output
●SupportsAS-I BUS
●Supports manual and automatic operation
