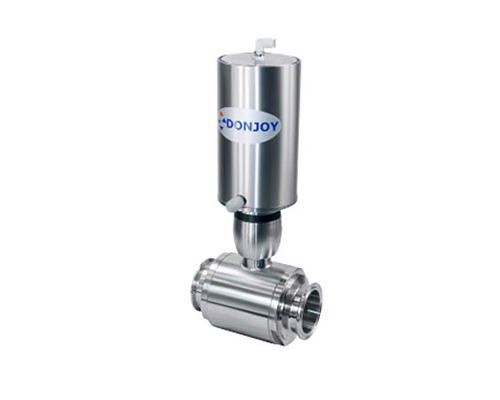

Straight Ball valve

Applications

Straight Ball valve, both manually and automatically operated valve are mainly used in processing beverages, wine, oil refining, cosmetics and chemical industries.

Design Features

●Size：1/2"-4",DN10-DN100
●Temperature：-20℃ - 120℃
●Pressure：10-bar
●Material：AISI 304 316L
●Smaller and lighter than the other valve
●Operating torque is small
●Gaskets:PTFE FDA 177.1550
●Whatever the connection is, it does not change the total length of the valve
●Connection : Clamp, weld, thread, Flange, DIN、SMS、RJT、FIL
●Can be equipped with pneumatic actuators, electric actuators
●Material contact parts:AISI，304/316L
●Certificate：PED/97/23/EC
