Donjoy New product, Cotroller / control unit / C-TOP, positioner / IL-TOP, feedback unit / F-TOP - IO-LINK

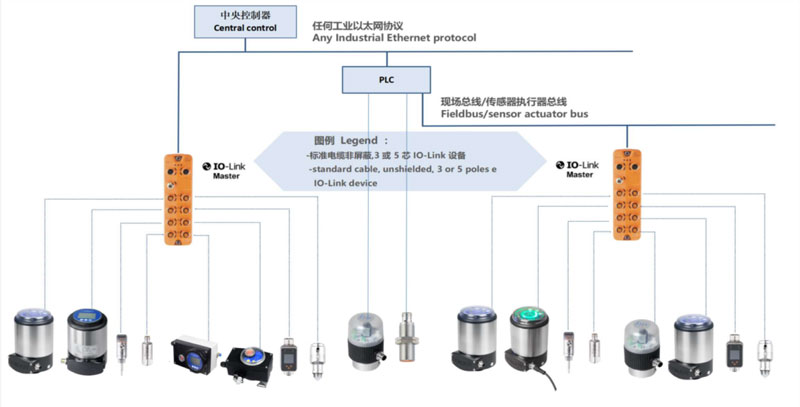

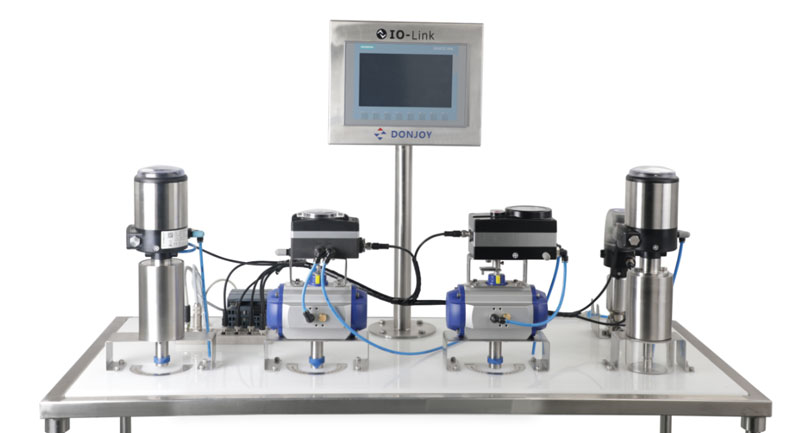

IO-LINK is a worldwide standardised IO technology (IEC 61131-9) for communicating with sensors and actuators. IO-LINK is a point-to-point communication system with 3-condtctor or 5-conductor connection technology for sensors and actuators and unshielded standard sensor lines.
IO-LINK devices are connected with standard commercial IO-LINK masters and can easily be integrated into all commonly used fieldbus and automation systems. 3-pin or 5-pin unshielded standard cables 20m in length between the IO-LINK device and IO-LINK master, are sufficient for connecting IO-LINK devices with IO-LINK masters
Cotroller / control unit / C-TOP, positioner / IL-TOP, feedback unit / F-TOP - IO-LINK, is mounted on the top of pneumatic valve actuator. It is compatibel with IO-LINK interface master station with international standard. It has many fuctions, such as signal transmission, LED position light display, valve opening & closing control and so on. The color and position accuracy of the positio LED light can also be reset through the IODD document according to the user’s working conditions or perferences. The setting method is very simple. “PC or PLC combined with IODD file description” can be achieved.
- Rated maximum travel: 60mm
- Operating ambient temperature: -20…60°C
- Storage temperature: -30…..80 ℃
- Relative humidity 85％, Non-condensing
- Climatic conditions: Indoor use only
- Altitude ≤ 2000M / MSL
- Wiring method: Screw tightening, torque 0.22……0.25Nm
- Electrical protection rating: IP67
- Rated voltage IO-link DC 20-30V
- Power consumption: 100mA (Max power consumption)
- Power consumption per input control point（Solenoid valve） 0.35W（ approximately 20mA）
- Version： IO-Link V 1.1
- Port class：A and B modes are supported
- Operation mode: IO-Link operation mode (SIO operation mode is not supported)
- Vendor ID: 1641 0x0669
- Devicer ID: See related IODD files：www.donjoyvalve.com
- Transmission speed： COM 2 = 38.4 k
- Minimum cycle time： 2.5 ms
- Data storage: yes
- Max. line length: 20 m between IO-Link master and IO-Link device
Position accuracy option：Option
- ±0.2mm Select
- ±0.5mm Select
- ±1mm Select
- ±2mm Default
- ±3mm Select
- ±5mm Select
