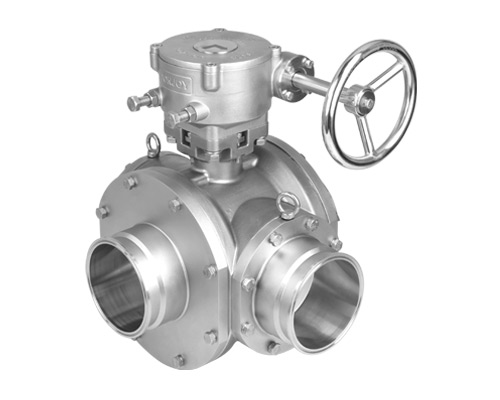

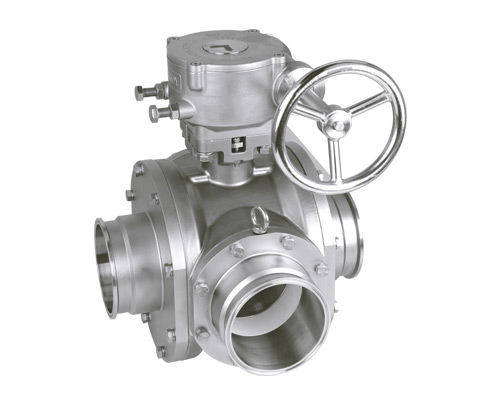

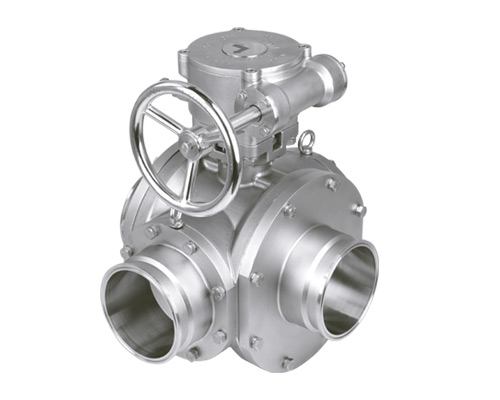

Donjoy new Product ——Manual 3-way non-retention ball valve with worm wheels (5 "-10"/DN125-DN250)
The manual 3-way non-retention ball valve with worm wheels looks neat in appearance, and it is relatively compact in structural design, saving space. Ultra-small operating torque with a range of 20nm-30Nm, which can be adjusted. This makes the device less powerful during operation and easy to use. The moving range or function of the device can be adjusted as needed.
There are no dead ends inside the valve cavity, non-retention design, and the inner cavity surface is RA <0.8um, which meets the health requirements of the United States 3A and EU EHEDG. This indicates that the internal design of the equipment is reasonable, there will be no problem of dead ends or retention, and the roughness of the inner surface meets the hygiene requirements. It is suitable for industries with high requirements for hygienic standards such as food and medicine.
Full stainless steel design, can be used for corrosive media with wide range. It means that the device is made of stainless steel, so it has good corrosion resistance and can adapt to a variety of corrosive media.
Nominal diameter: DN125-DN250
Nominal pressure: PN16
Applicable medium: water, oil, gas and its mixture
Maximum temperature: 150℃ (180℃ option)
Valve body material: 316L
Sealing material: PTFE
Executive agency: pneumatic, manual with worm wheel
Donjoy has manufactured ball valve for more than 20 years, and for more than 3 million for various industries; Donjoy ball valves are designed in strict accordance with the US 3-A-68-00 high-clean requirements. Donjoy ball valves have the advantages of small torque, long life, full -lipid, sealing elastic compensation, small volume, no detention inside, the appearance is close to no dead ends, a very flexible function portfolio, no professional tools can maintain, economical, simple, reliable, etc.. After more than 20 years and more than 3 million manufacturing and application experience, and integrate the current latest technology and material applications, it is based on rich on -site installation and product application experience innovative design. It can be applied to various foods, pharmaceuticals, beverages, beer, white wine, water treatment, cosmetics, new energy, daily chemical washing, and can be cleaned by cleaning ball through the inner cavity with same diameter.
