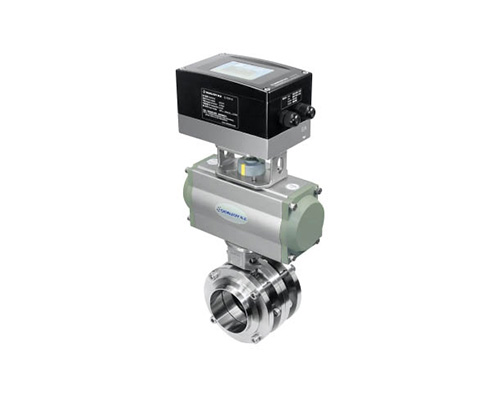

Regulation type pneumatic butterfly valve

Application

Regulating type pneumatic butterfly valve can be applied in various fluid control systems, such as food and beverage, wine, pharmaceutical and other industries. The valve has feature of no dead ends, large flow, simple maintenance, small volume appearance.

Technical Specification

◆ Support: DEVICE NET BUS
◆ Single-acting(standard), double-acting (option)
◆ One-touch auto-tuning function
◆ Support for manual operation
◆ Power supply: DC 24V ± 10%
◆ Analog signals: 0 / 4-20mA, 0-5 / 10V
◆ Size: 1 "-4", DN25-DN100
◆ Material: 304 / 316L
◆ Pressure: 10bar
◆ Temperature: 130 ℃
◆ inner surface roughness: Ra<0.4μm (option)
◆ Connection: weld, clamp, thread, flange and other standards
