Pneumatic Diaphragm Valve with Control Unit

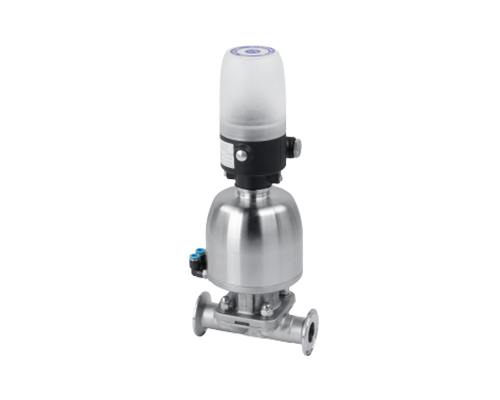

Pneumatic Diaphragm Valve with Mini C-TOP

◎ Size: 1"-4", DN25-DN100
◎ Pressure: 10bar (145 PSI)
◎ Material: ASTM 316L, 1.4404,1.4435 NB2 Fe <0.5%
◎ Temperature: -20 ℃ + 150 ℃ (EPDM) -4 ℉ + 302 ℉ (+ 140 ℃ (SIP, 30) 284 ℉)
◎ Connection: Clamp, Weld, Thread, 3A BPE DIN SMS IDF ISO
◎ valve body structure: straight, tee, U-tee, tank bottom valve, multi-channel diaphragm
◎ Diaphragm Material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Viton)
◎ Certificate: 3A-54-02 / 1580, PED 97/23 EC, FDA177.2600

Mini C-TOP

Mini C-TOP is a section control unit, connecting with PLC to achieve automation control.
The valve opens - green light
The valve closes - red light
Design with dynamic button (manual design)
Power Supply: DC 24 V ±10%
Source: M5 / Φ 4
