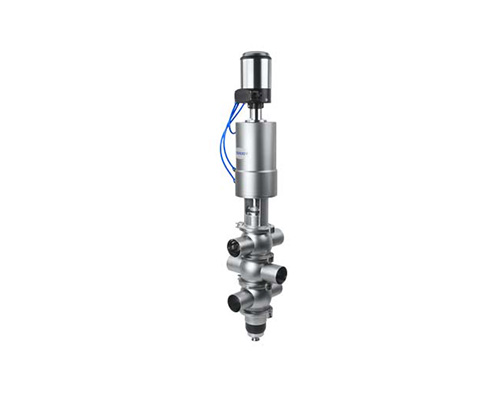

Mixproof valve / double seat valve

Applications

◆The mixproof valve is widely used in fluid processing technology, especially in the beverage, dairy industry applications.
◆Mixproof valve is a high degree of double-seal valve. Through the interface between two fluids, this system can be implemented in two body synchronization process, preventing the possibility of contaminating materials. leakage chamber and  leak detector  is self- cleaning by valve seat.

 Technical specifications

●Size:DN40-1.1/2"to DN100-4"
●The valve is equipped with a normally closed pneumatic actuator
●Forged ball valve body
●If there is a gush of fluid leaks from bottom of valve tube, you can determine whether the seal is damaged
●Easy to remove( just removing the clamps is enough)
●Welded connection (mm or inch)
●Balance Protection Design
●Max.Operating Pressure：10bar
●Min.Operating Pressure：Absolute vacuum
●Working temperature：-10℃ - 130℃(140℃ For short periods or disinfection)
●Certificate：3-A-85-03，PED/97/23/EC,FDA177.2600 ●Compressed air pressure：5bar-7bar
●Gas connection：R1/8"(BSP)
