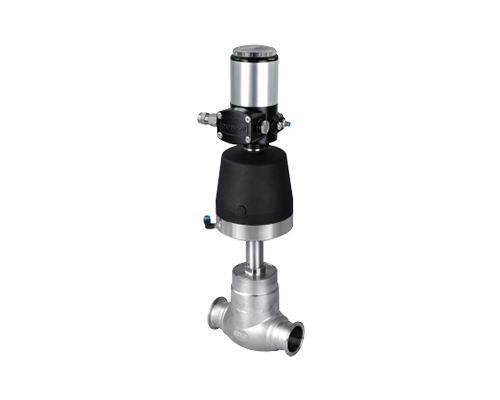

Proportional aseptic control valve

Application

● Aseptic regulators are pneumatic proportional valves, flow control design devices for the dairy and food processing industries, beverage production, pharmaceutical and fine chemical industries. The most important applications are pressure control, flow control, liquid level, etc.
● Pneumatic control valve is a conical spool position. It is designed with PTFE diaphragm completely isolated from the atmosphere and has a high level of cleanliness requirements.

Technical specifications

◆SIZE: DN25-DN100 to 1"-4"
◆Material: ASTM304/316L, 1.4301/1.4404
◆Working temperature: -10 ° C to +120 ° C (EPDM)
◆Working pressure: 10bar 145PSI
◆Compressed air: 4-7bar
◆Pneumatic actuator connection G1/8" (BSP)
◆Voltage: 24V DC ±10%
◆ Analog signal input and output: 4...20 mA 0...10V
◆ Support manual operation, large screen interface, Chinese and English menu
◆IP68 rating

◆ Certification: 3-A-53-06; PED-97/23/EC; FDA177.2600; EEX DII BT4
