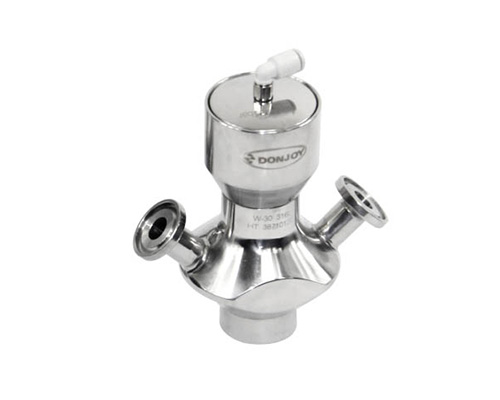

Automatic Reset Aseptic Sampling Valve

Automatic Reset Aseptic Sampling Valve

◆The aseptic sampling valve is designed for sterilization before and after each sampling.

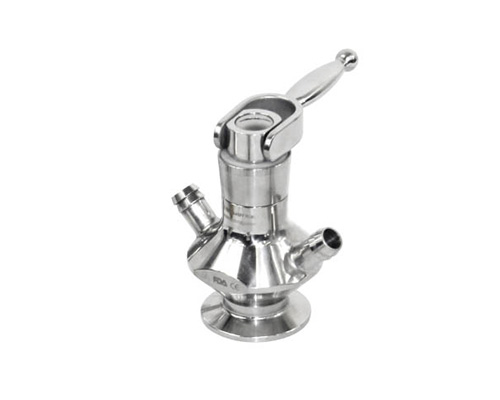

◆Open to Sampling-Valve is opened by rotating the handle
◆Closed to Sterilizing-The built-in spring closes the valve. Do Keep hose channel open while sterilizing and recommend to install a small safety valve on the outside if sterilizing by steam.
◆Application: the valve is used for the beer, milk, fruit juice, beverage, pharmaceutical and other industries.

Technical Specifications

◆Connection: clamp, welding, tank connector, multi-channel pipeline connector
◆Valve body material：AISI 316L（1.4404）ASME BPE 316L
◆Diaphragm：EPDM  PTFE
◆Max. Temperature：130℃(EPDM)
◆Max. Temperature：150℃(PTFE)
◆Pressure：10bar
◆Certificate：3-A-55-02，PED/97/23/EC
