TECHNICAL SPECIFICATIONS:
Single key automatic setting
Valve anti-leakage function
Valve fault feedback function
Different valve positions display different colors of LED lights
Signal feedback: PNP NPN dry contact 4-20mA
Bus communication: IO-Link; AS-I V3.0
Power supply: DC24V..... DC8V
Stroke: 60mm; 30mm
The precision of valve position can be set on site: 0.2mm, 0.5mm,1mm, 2mm, 3mm
High and low color can be set on site
Protection level: Ip67

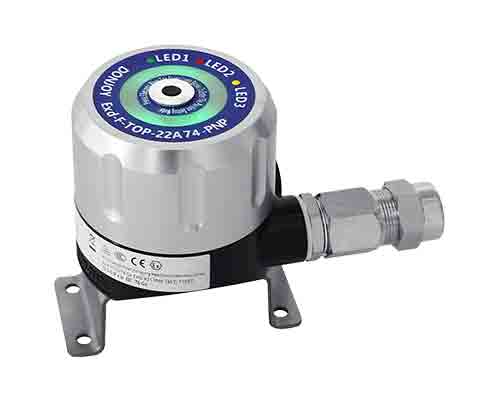

F-TOP-22A53 is a flation-proof valve position feedback device, it has different colors of LED lights to display the current valve position state, at the same time feed back the current valve position signal to a variety of automatic control system including PLC/DCS.
High precision, leakage proof valve, High efficiency, high cleanliness, precision can be set Push-button operation, no disassembly, Ex d explosion-proof & intrinsic safety explosion-proof double certification
| File | Description | Language | Size |
|---|---|---|---|
| Valve Position Feedback | Valve position feedback device: straight travel 1553; rotary travel 1671; output 4-20mA and PNP DC24V | English | 4.66MB |
| Self-Control Valves | It includes various structure adjustment valves such as angle seat valve, globe valve, single seat valve, V-type ball valve, butterfly valve, etc. | English | 9.6MB |
