TECHNICAL SPECIFICATIONS:
Power supply: DC24V ±10%
Input: 0/4-20mA; 0-5V/10V
Output: 0/4-20mA; 0-5V/10V
Bus communication: IO-Link; MOD BUS RS485
TECHNICAL SPECIFICATIONS:
Power supply: DC24V ±10%
Input: 0/4-20mA; 0-5V/10V
Output: 0/4-20mA; 0-5V/10V
Bus communication: IO-Link; MOD BUS RS485

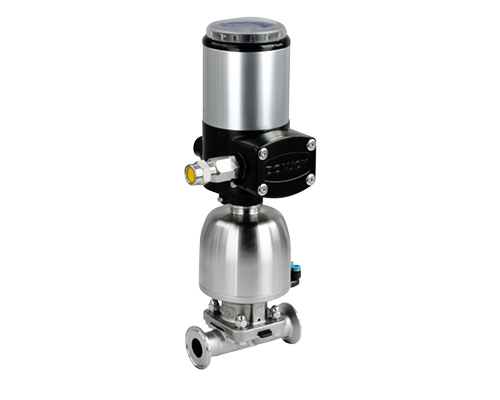

The IL-TOP-21A31/21A32 is a flameproof design valve positioner. It receives instructions from PLC/DCS or other automatic control systems, such as 0/4-20mA, 0-5V/10V to work, at the same time feedback the current valve position signal to PLC/DCS and other automatic control systems. It can also communicate through IO-Link or MOD BUS RS485 version bus.
● Single button self-tuning
● Configurable precision
● Configurable safe range
● English/Chinese menu setting
● Repeated positioning accuracy error
● No air consumption when valve position is held
● Adjustable curve can be set
● Intrinsic safety explosion-proof certificate
● IP66 protection grade
| File | Description | Language | Size |
|---|---|---|---|
| Valves Positioner | The valve positioner is divided into: linear stroke IL-TOP-1831 / 1832; rotary stroke IL-TOP-1441 / 1891; | English | 4.66MB |
| Self-Control Valves | It includes various structure adjustment valves such as angle seat valves, globe valves, single seat valves, V-type ball valves, butterfly valves, etc. | English | 9.6MB |
