Donjoy Angle seat valve
The angle seat valve is a normal valve which has the same function as the diameter, minimal flow resistance, no noise during opening and closing, no dead angle, It can be used in vacuum environment and has various designs.
Technical Features

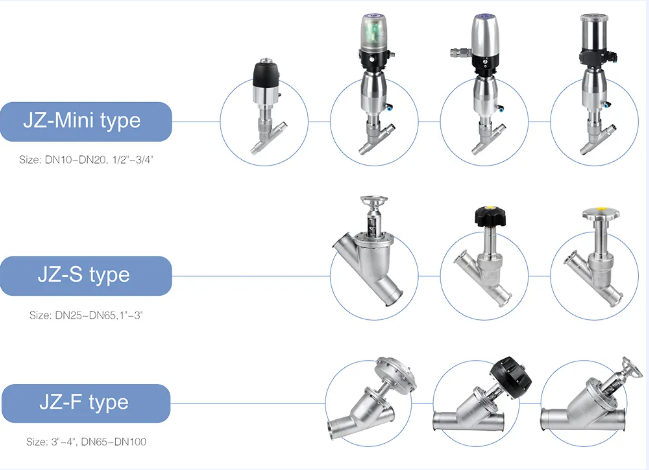

- Specifications: 1/2"-4", DN10-DN100
- Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
- Pressure: vacuum to 10bar (1.0 MPa)
- Temperature: -20℃ to +150℃, Depending on the seal material
- Sealing: PTFE/TFM/PEEK
- Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
- Connection method: thread, clamp, welding, flange
- Drive mode: manual, pneumatic, electric
- Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm
- Certification: FDA 177.2600; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC;

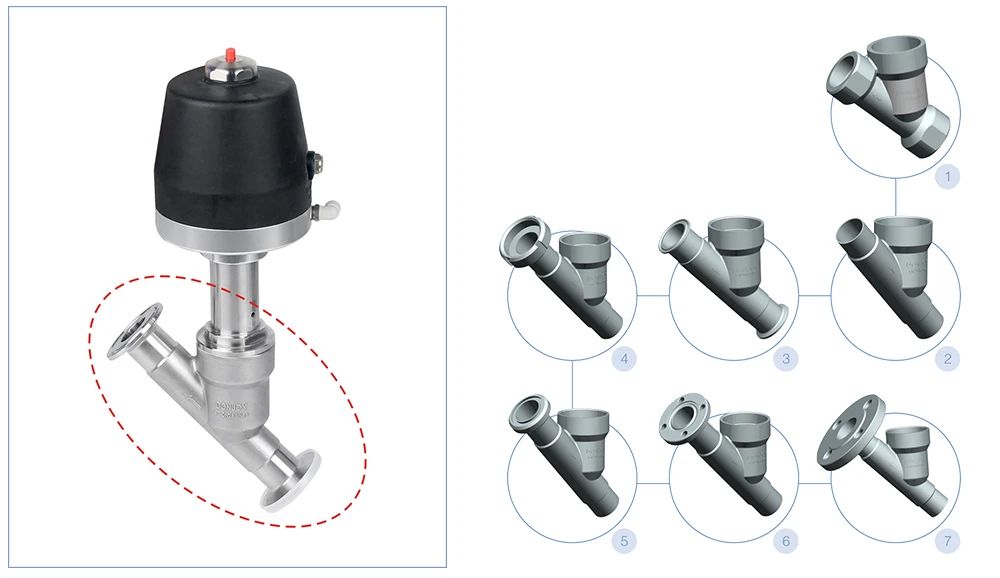

Different Connection Methods
1.Female thread
2.Welding
3.Clamp
4.Nut
5.Male thread
6.Aseptic flange
7.Flange

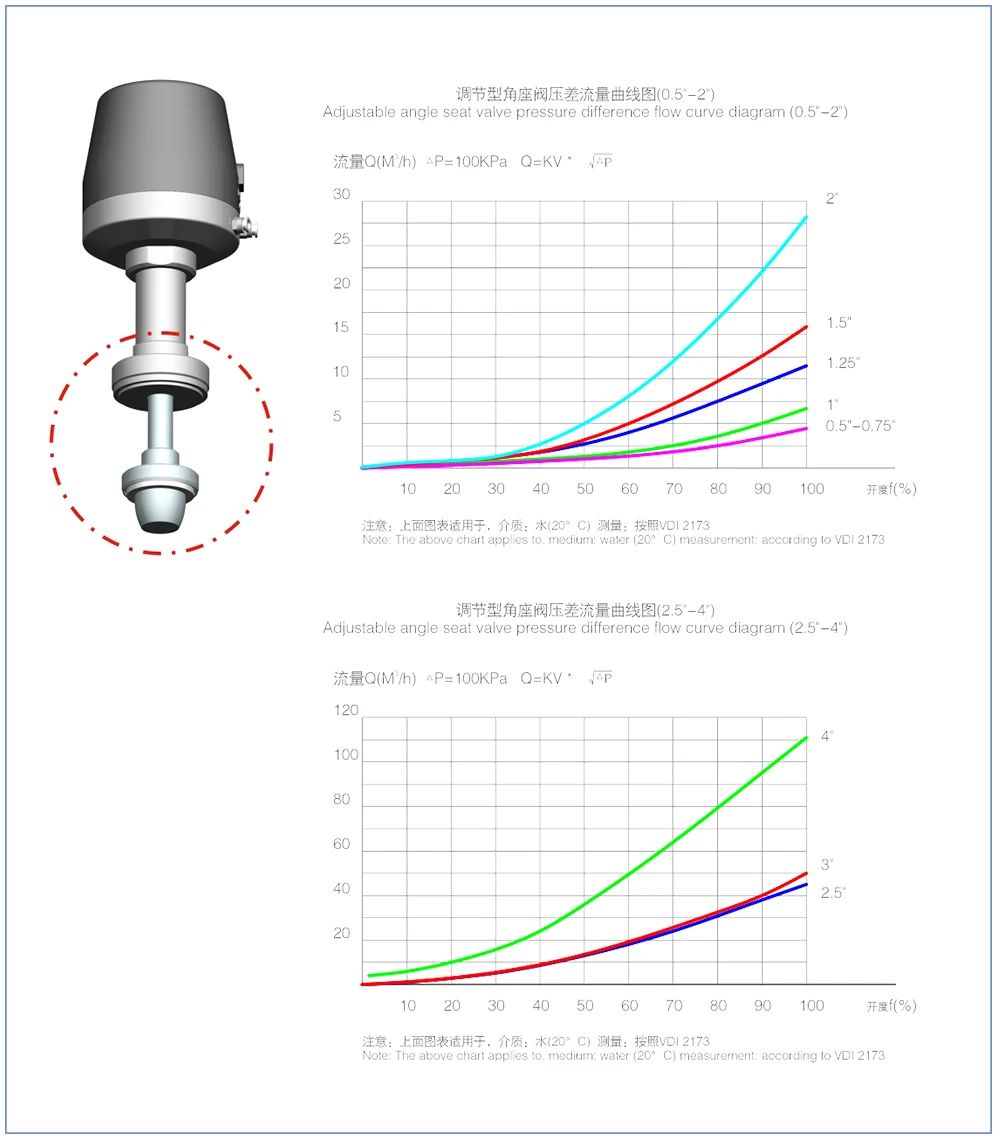

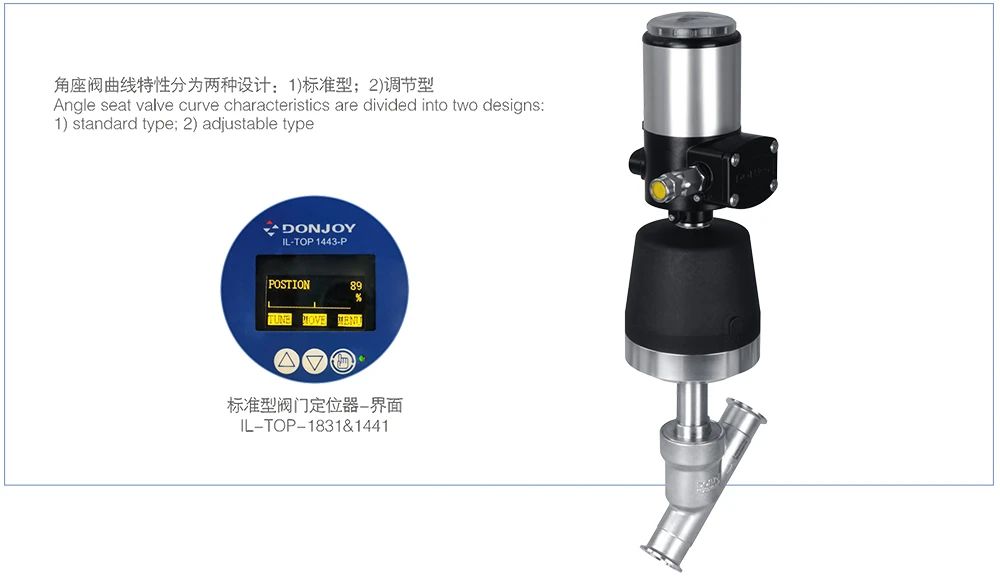

Proportional angle seat valve
